Barton Marine Size 3 Stanchion Lead Block - Single w/Becket Cam Cleat [N03591]

Barton Marine

(No reviews yet) Write a Review
Breakwater: $91.82
SKU:
99121
UPC:
5035088086641
Weight:
0.30 LBS
Width:
4.00 (in)
Height:
3.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout

Out of stock

Product Overview

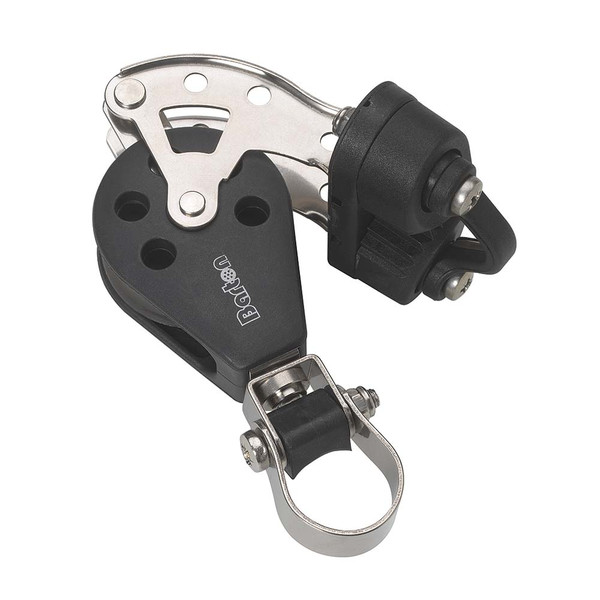

Size 3 Stanchion Lead Block - Single with Becket & Cam Cleat

Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World.  Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment.

Ball bearing sheaves have a precision molded acetal sheave running on a significant diameter brass bearing, ensuring free running under the highest loads.   The unit will fully rotate about the swivel head to match your pulling angle.

Cam cleat will secure the line into place.

Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.

Technical Specifications

  • Sheave - Single
  • Sheave Size - 1-3/4" (45mm)
  • Maximum Rope Diameter -  3/8" (10mm)
  • Safe Working Load - 881 lb (400 kg)
  • Maximum Stanchion (Tube) Size - 1" (25mm)

*Sold as an Individual


Quick Guide (pdf)
Brochure (pdf)
