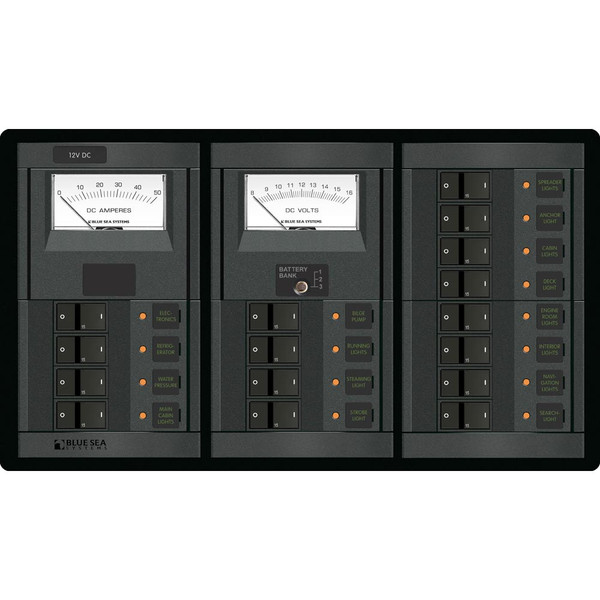

Blue Sea 1201 12V DC 16 Position - w/DC Analog Voltmeter & Ammeter [1201]

Blue Sea Systems

(No reviews yet) Write a Review
Breakwater: $1,203.31
SKU:
57230
UPC:
632085012014
Weight:
7.20 LBS
Width:
12.00 (in)
Height:
9.00 (in)
Depth:
18.00 (in)
Shipping:
Calculated at Checkout

Out of stock

Product Overview

12 Volt DC 16 Position w/DC Analog Voltmeter & Ammeter

Features:

  • 4 to 32 branch circuits with installed 15 Ampere circuit breakers
  • Available with voltmeters, ammeters, and digital multimeters
  • Includes 4205-Square Format Label Set


Specifications:
  • Positions: 16
  • Nominal Voltage: 12V DC
  • Maximum Amperage*: 50A per bus
  • Height: 7.75" (196.85mm)
  • Width: 13.63" (346.2mm)
  • Depth: 3.00" (76.2mm)
  • Weight: 6.58lb (2.98kg)


* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(16) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
(1) - 8022 - DC Analog Ammeter - 0 to 50A with Shunt (Meter)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: DC
  • Box Dimensions: 9"H x 12"W x 18"L WT: 7.2 lbs
  • UPC: 632085012014

Quick Guide (pdf)
Owner's Manual (pdf)
