Shakespeare 5309-R 23' Galaxy VHF Antenna [5309-R]

Shakespeare

(No reviews yet) Write a Review
Breakwater: $899.99
SKU:
13176
UPC:
719441200121
Weight:
15.80 LBS
Width:
5.00 (in)
Height:
5.00 (in)
Depth:
147.00 (in)
Shipping:
Calculated at Checkout

Out of stock

Product Overview

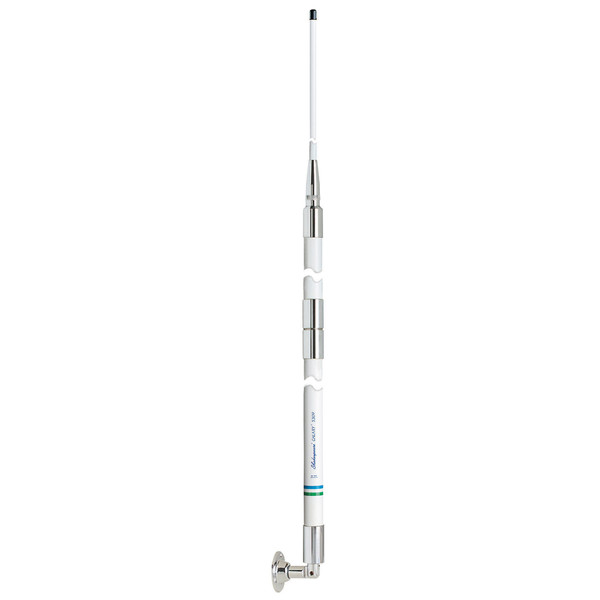

5309-R 23' Galaxy VHF Antenna

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation

This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.

Features:

  • Brass and copper elements
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
  • Two sections: Base 172", Tip 105"
  • Twin to: Galaxy Style 5310-A HF/SSB
  • Shakespeare Limited Warranty: 5 years
  • Includes FME Cables

Technical Specifications:

Frequency:VHF Marine Band
Bandwidth:5 MHz within 2.0:1 VSWR
SWR:nominally 1.5:1 at 156.8 MHz
Gain:9 dB
Max Input (Watts):150 watts
DC Ground:NO
Height (feet):23'
Polarization:Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 144"
  • Box Dimensions: 5"H x 5"W x 147"L WT: 15.8 lbs
  • UPC: 719441200121

Quick Guide (pdf)
