Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16" [01414]

Wichard Marine

(No reviews yet) Write a Review
Breakwater: $65.40
SKU:
93118
UPC:
768536014143
Weight:
0.22 LBS
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
6.00 (in)
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

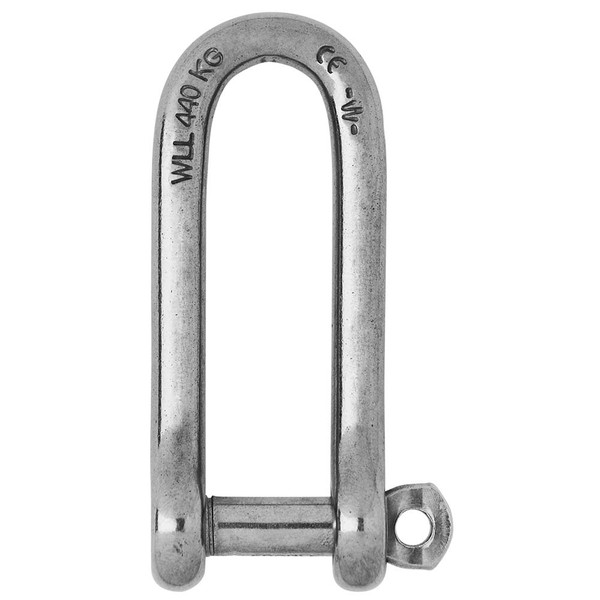

Captive Pin Long D Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1580
  • Breaking load (lb) 7930
  • Weight (lb) 0.203

Dimensions (see 2nd image):

  • A (inch) 2-7/16"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 43/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • F (inch) 3-15/64"
  • G (inch) 1-11/16"
