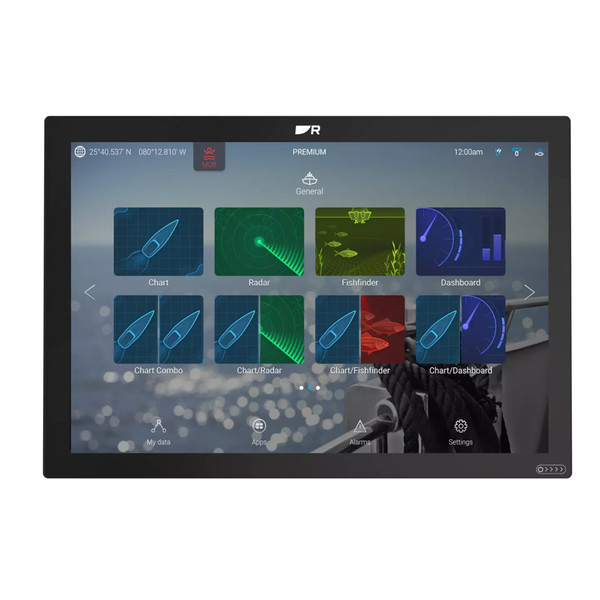

Axiom 2 XL 24" MFD Kit with USB Card Reader

The flagship of the Axiom family, Axiom 2 XL, delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

Features:

6 Core Processor - Get underway and do everything faster
Ample Storage - 64 GB for waypoints, apps, and LightHouse Charts
Smooth Video and Faster Charts - Faster video frame rates and 30% faster chart rendering
Power That Pushes the Limits - Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
Ready for all Conditions - Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
Smart Backlighting - Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
Remote Control - Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.
Unleash the Power of Axiom 2 XL - Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

Technical Specifications:

Dimensions - 15.23" (H) x 22.77" (W) x 6.98" (D)
Weight - 24.9 lbs
USB Connection - USB-A: Touch input, USB-B: Touch output
Accessory Connection - USB Micro B
GPS Antenna Connection - TNC type connector
External Storage - Remote card reader required
Ethernet Connection - PoE RayNet (10/100/1,000 Mbits/s) x 3
HDMI Connections - HDMI in, HDMI out
Audio Output - Left and Right RCA connectors via Power/Video/Audio cable.
Analog Video Connections - Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
NMEA 0183 Support - Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
NMEA 2000 Connection - DeviceNet connector
Wireless Connections - Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
External Alarm Connection - Bare-ended wires x 2
Internal Storage - 64GB solid state
Power Consumption @ 12VDC - 92.5W
Power Consumption @ 24VDC - 77.96W
Off Current @ 12VDC - PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Off Current @ 24VDC - PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
PoE Operating Voltage Range - 9.5VDC to 32VDC
Current - 10.03A
Operating Voltage Range - 8VDC to 32VDC
Fuse Rating - 15A
Nominal Supply Voltage - 12VDC/24VDC
LEN (NMEA 2000 Load Equivalency Number) - 1
Resolution - 1920 x 1200 WUXGA
Size (Diagonal) - 24"
Illumination - 1300 nits / 1300 cd/m2
Viewing Angle - Top 89° / Bottom 89° / Left 89° / Right 89°
Ratio - 16:10
Type - IPS (In-Plane Switching)
Color Depth - 24-bit
Number of Simultaneous Touches - 2
Operating Temperature - -25°C to +55°C (-13°F to 131°F)
Storage Temperature - -30°C to +70°C (-22°F to 158°F)
Relative Humidity - up to 93% @ 40°C (104°F)
Waterproof Rating - IPx6, IPx7

What's In The Box?

MFD (Chartplotter)
Mounting gasket tape
Rear mounting bars (x2)
Mounting bar fixings (M5x20 pozi countersunk) (x4)
Mounting fixings - Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet (x 4)
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
Documentation
DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
Auxilary Alarm
RCR-SDUSB - Card Reader + USB
MFD VideoIN/Alarm Cable – 2M - A80235
